• Insertion power gain: 13.6 dB

• Low noise figure: 0.75 dB

• Low current consumption: 4.9 mA

• Insertion Loss in bypass mode: -2.2 dB

• Operating frequencies: 716 - 960 MHz

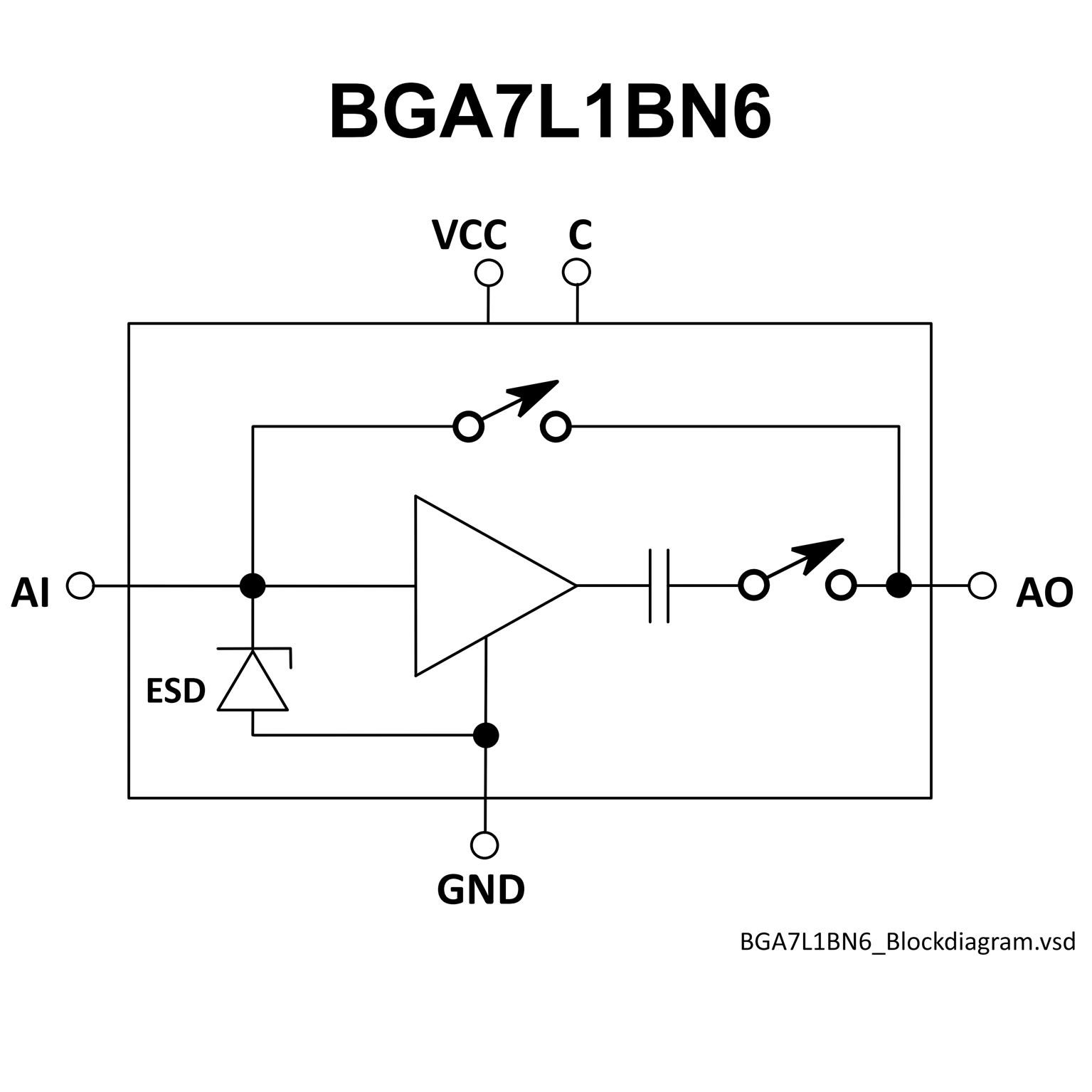

• Two-state control: Bypass- and High gain-Mode

• Supply voltage: 1.5 V to 3.6 V

• Digital on/off switch (1V logic high level)

• Ultra small TSNP-6-2 leadless package

  (footprint: 0.7 x 1.1 mm2)

• B7HF Silicon Germanium technology

• RF output internally matched to 50 Ω

• Only 1 external SMD component necessary

• Pb-free (RoHS compliant) package
