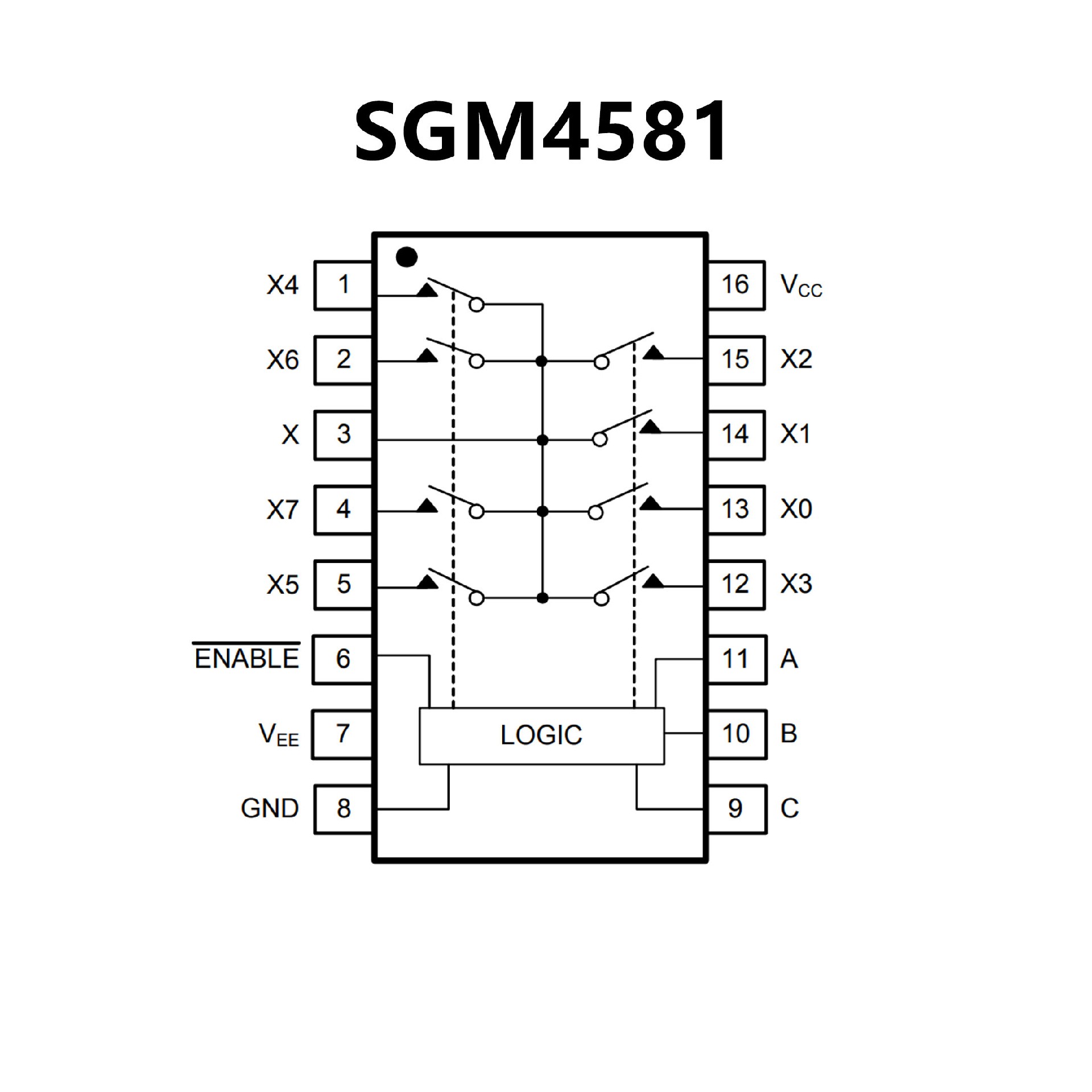

SGM4581.pdf•Guaranteed On-Resistance
51Ω with ±5V Supplies
84Ω with Single +5V Supply
• Guaranteed On-Resistance Match Between Channels
• Low Off-Leakage Current 10nA at +25℃
• Low On-Leakage Current 10nA at +25℃
• ±1.8V to ±5.5V Dual-Supply Operation
+3.6V to +11V Single-Supply Operation
• TTL/CMOS-Logic Compatible
• Low Distortion: 0.08% (RL = 600Ω, f = 20Hz to 20kHz)
• High Off-Isolation: -70dB (RL = 50Ω, f = 1MHz)
• Extended Industrial Temperature Range:-40℃ to +85℃
• Available in Green SOIC-16, SSOP-16, TSSOP-16
and TQFN-3×3-16L Packages
• Fast Switching and Propagation Speeds
• Low Crosstalk Between Switches
• Diode Protection on All Inputs/Outputs
• Analog Power Supply Range (VCC − VEE) = 2.0 to 12.0 V
• Digital (Control) Power Supply Range (VCC − GND) = 2.0 to 6.0 V
• Improved Linearity and Lower ON Resistance Than Metal−Gate Counterparts
• Low Noise
• In Compliance with the Requirements of JEDEC Standard No. 7 A
• Chip Complexity:

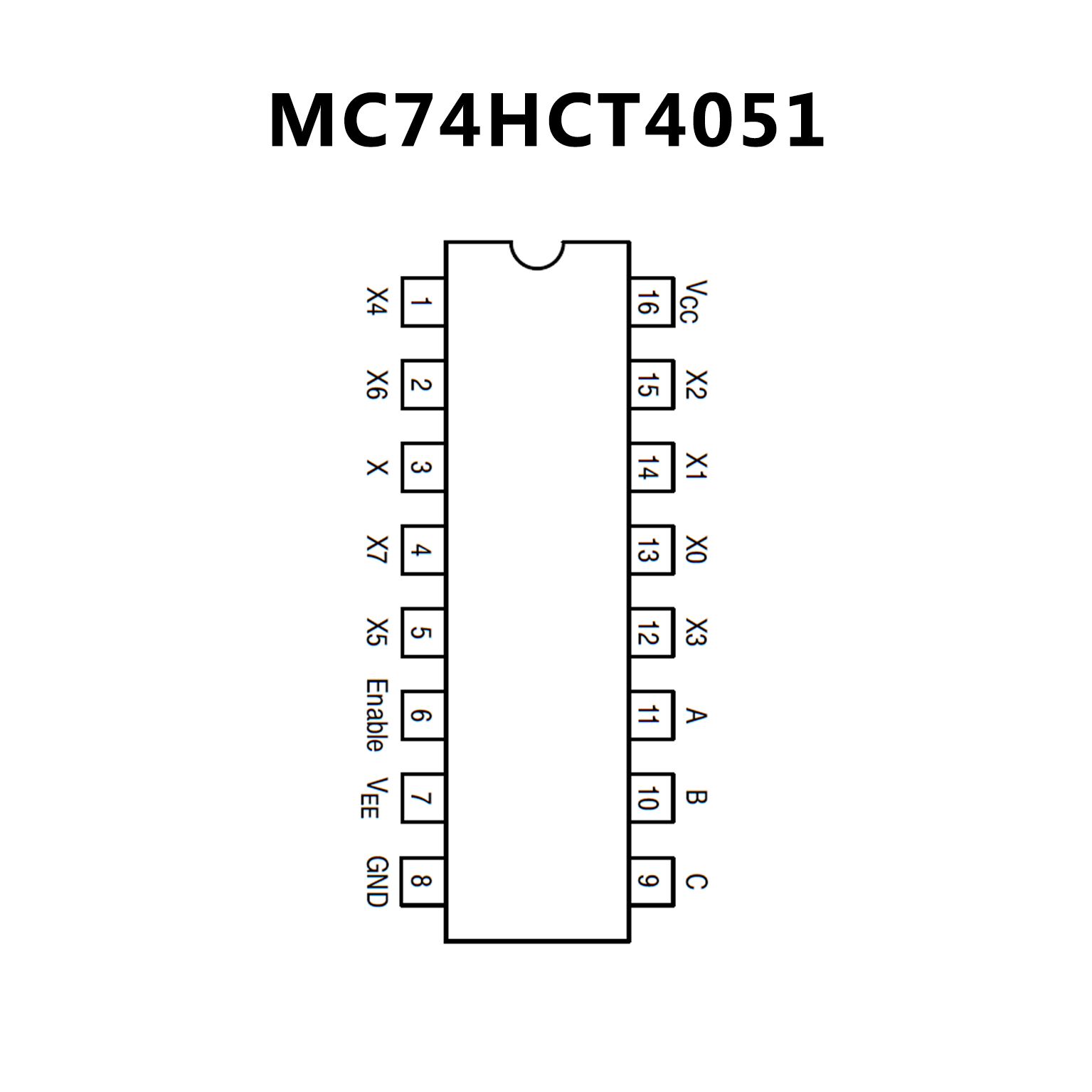

HCT4051A − 184 FETs or 46 Equivalent Gates
HCT4052A − 168 FETs or 42 Equivalent Gates
HCT4053A − 156 FETs or 39 Equivalent Gates
• NLV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
• These Devices are Pb−Free and are RoHS Compliant
