TCA9539 Q1 Automotive Low Voltage 16 Bit I2C and SMBus Low Power I/O Expander with Interrupt Output
SGM4591Q
SGM4591Q.pdf
SGM4591Q.pdfFEATURES
• AEC-Q100 Qualified for Automotive Applications
Device Temperature Grade 1
TA = -40℃ to +125℃
• 1.65V to 5.5V Input Voltage Range
• Parallel I2C I/O Expander
• 5V Tolerant Input and Output Ports
• Active Low Reset Input
• Active Low Interrupt Output
• Support 400kHz I2C Fast Mode
• Internal Power-on Reset
• No Glitch on Power-up
• Polarity Inversion Register
• Compatible with Most Processors
• Select Device Address by Two Pins (up to Four
Devices)
• Latched Outputs Drive LEDs Directly
• Latch-up Performance (>100mA) to Meet JESD
78 Class II Standard
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green TSSOP-24 Package

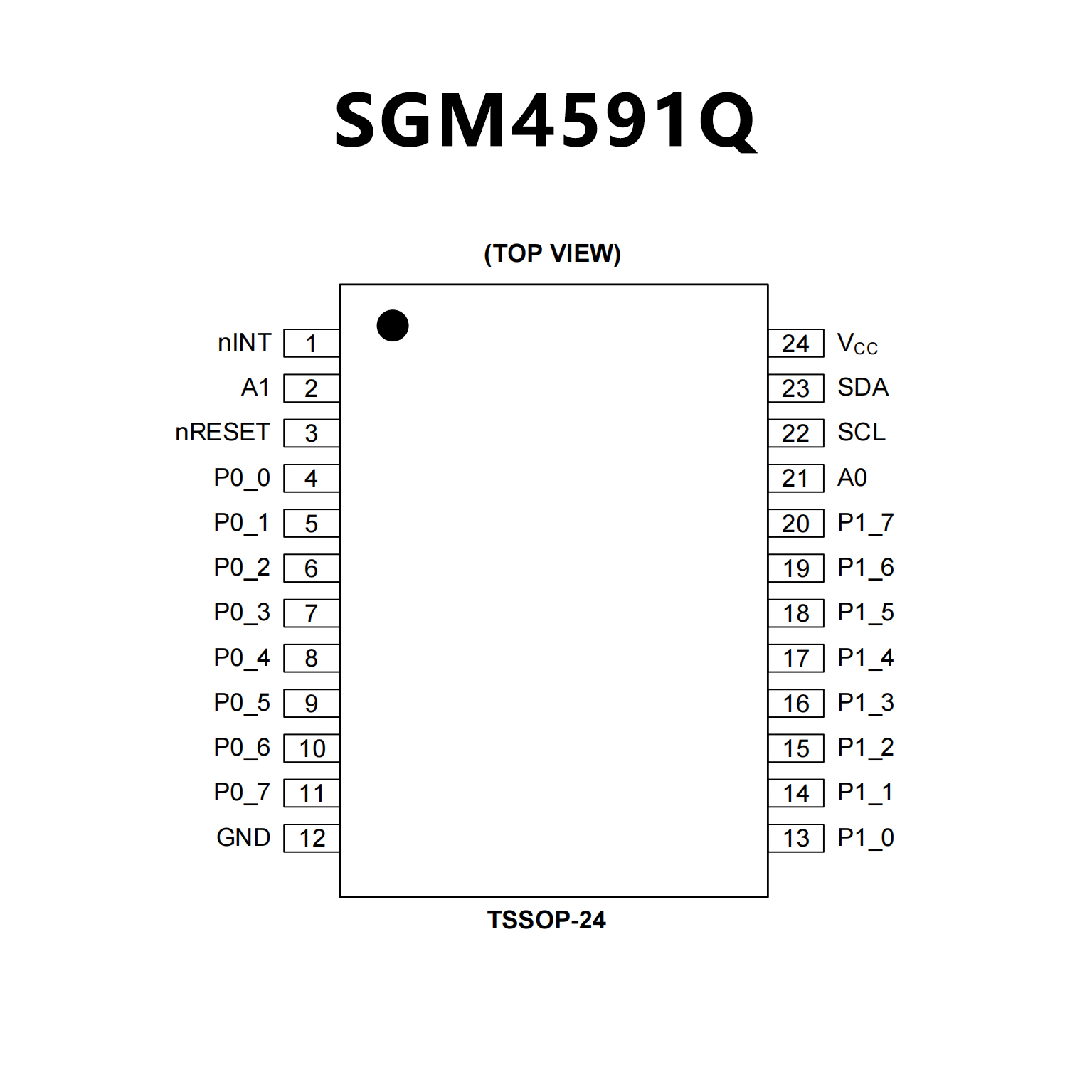

PIN CONFIGUTION
CROSS
FEATURES
• AEC-Q100 (Grade 1): Qualified for
automotive applications
• Functional Safety-Capable
Documentation available to aid in
functional safety system design
• I2C to parallel port expander
• Open-drain active-low interrupt output
• Active-low reset input
• 5 V tolerant input and output ports
• Compatible with most microcontrollers
• 400 kHz Fast I2C bus
• Polarity inversion register
• Internal power-on reset
• No glitch on power up
• Address by two hardware address
pins for use of up to four devices
• Latched outputs for directly driving LEDs
• Latch-up performance exceeds 100
mA Per JESD 78, class II
• ESD protection exceeds JESD 22
2000-V Human-body model (A114-A)
1000-V Charged-device model (C101)
PIN CONFIGUTION
