5.5V, 10A, 4mΩ On-Resistance Load Switch.
SGM25665
SGM25665.pdf
SGM25665.pdf
No.14765
FEATURES
• Single Channel Load Switch
• VIN Voltage Range: 0.1V to 5.5V
• VBIAS Voltage Range: 1.5V to 5.5V
• Maximum Continuous Current: 10A
• On-Resistance: 4mΩ (TYP)
• Tri-State Pin with Configurable Slew Rate
• Low Power Consumption:
On-State (IQ): 12μA (TYP)
Off-State (ISD): 2μA (TYP)
• Thermal Shutdown
• Available in a Green UTQFN-1.5×2-10L Package
DESCRIPTION
The SGM25665 is a small single-channel load switch with 4mΩ (TYP) on-resistance. The device can operate over a wide input voltage range of 0.1V to 5.5V. It can support a 10A maximum continuous load current and is controlled by the ON pin, which features direct compatibility with low voltage control signals. The configurable rise time can be used to avoid inrush current.
The device has thermal shutdown function. When the junction temperature exceeds +170 ℃ , the inner N-MOSFET will be turned off through the thermal shutdown circuitry, and will remain off until the die temperature drops below +150℃. The SGM25665 offers the fixed quick output discharge function in disabled status.
The SGM25665 is available in a Green UTQFN-1.5×2-10L package.

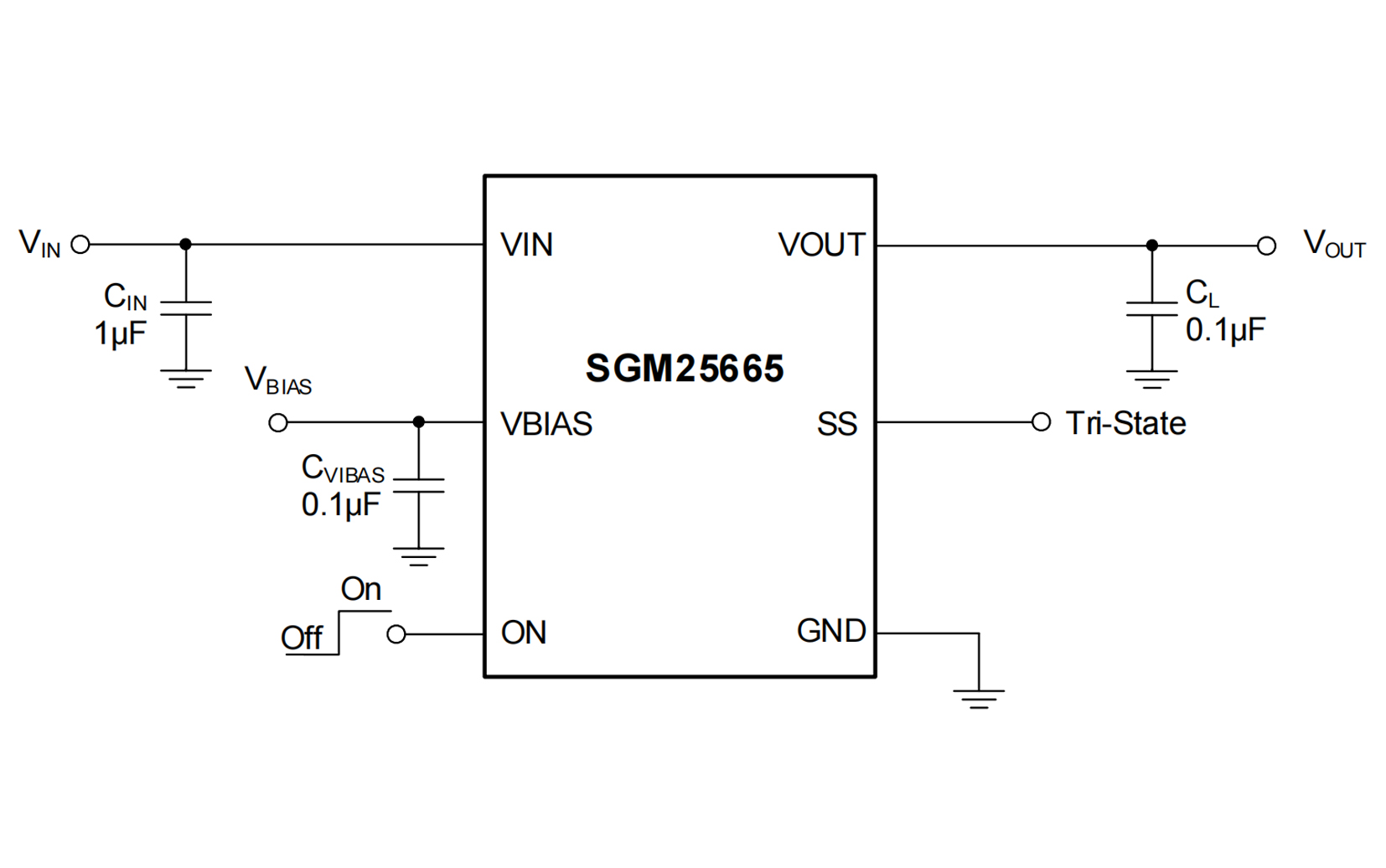

APPLICATION CIRCUIT

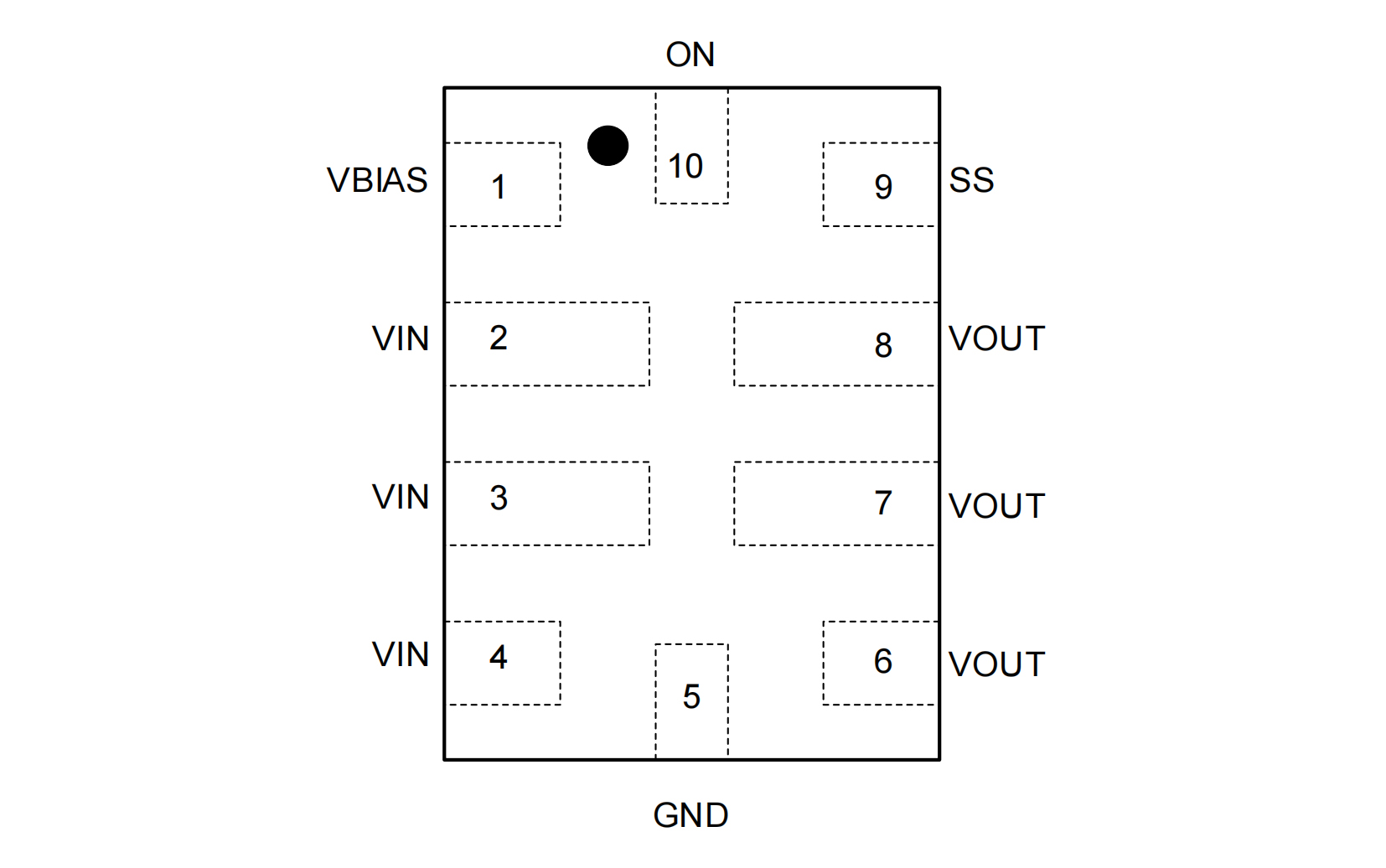

PIN CONFIGUTION
