Bias and Monitoring Management Circuit.
SGM41290
SGM41290.pdf
SGM41290.pdf
No.14766
FEATURES
• Twelve Channels 12-bit VDAC/IDAC (HEATERx)
Supports Current and Voltage Output Modes
Voltage Mode: 0V to 2.5V/5V, Maximum 40mA
Load Current
Current Mode: 0mA to 30mA
Power Supply (VDRIVE) : 2.7V to VDD
• Four Channels 12-bit 200mA IDAC (IBIAS)
Maximum Current: 200mA/300mA
EN_IBIASx Enable
EN_IBIASx Fast Turn-Off Control
Power Supply Range (PVDD): 1.5V to VDD
• Twelve Channels Configurable MULTI_IOx
Support Current Monitoring
Support Voltage Monitoring
Support Digital General IO Function
• I2C Interface Supports a Maximum of 1MHz
• SPI Interface Supports a Maximum of 20MHz
• Integrated Over-Temperature Alarm Function
• Available in a Green WLCSP-3.98×3.89-56B Package
DESCRIPTION
The SGM41290 is a highly bias and monitoring management circuit for silicon optical control applications. There are twelve channels of 12-bit programmable current/voltage output DACs with a maximum output current of 40mA and four channels of 12-bit 300mA high-current output DACs. The IC also has twelve MULTI_IO pins (MULTI_IOx) to monitor the current or DAC output signal. The functions of the twelve pins are configurable respectively through the I2C interface or SPI.
The SGM41290 is available in a Green WLCSP-3.98×3.89-56B package. It operates over an ambient temperature range of -40℃ to +105℃.

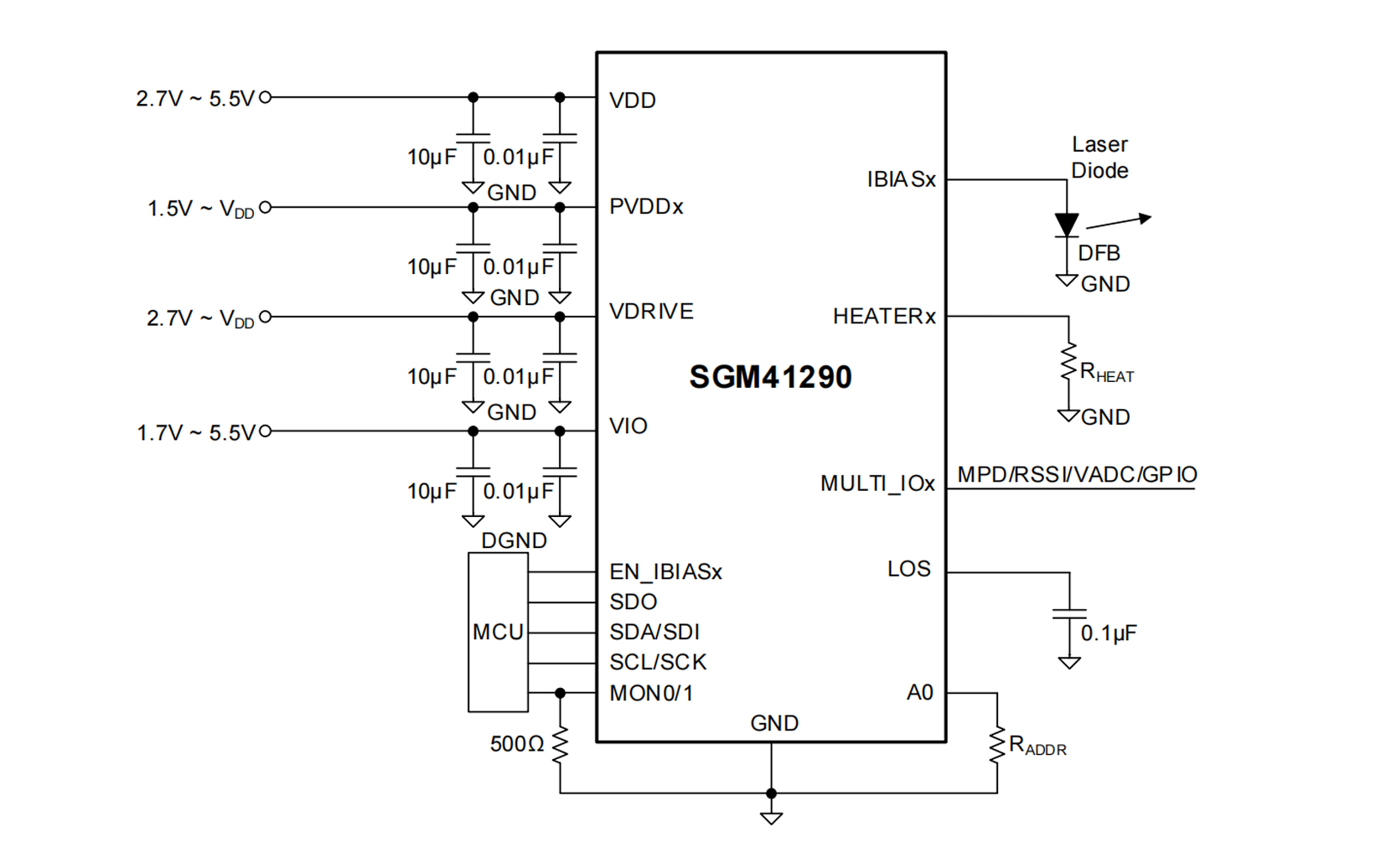

APPLICATION CIRCUIT

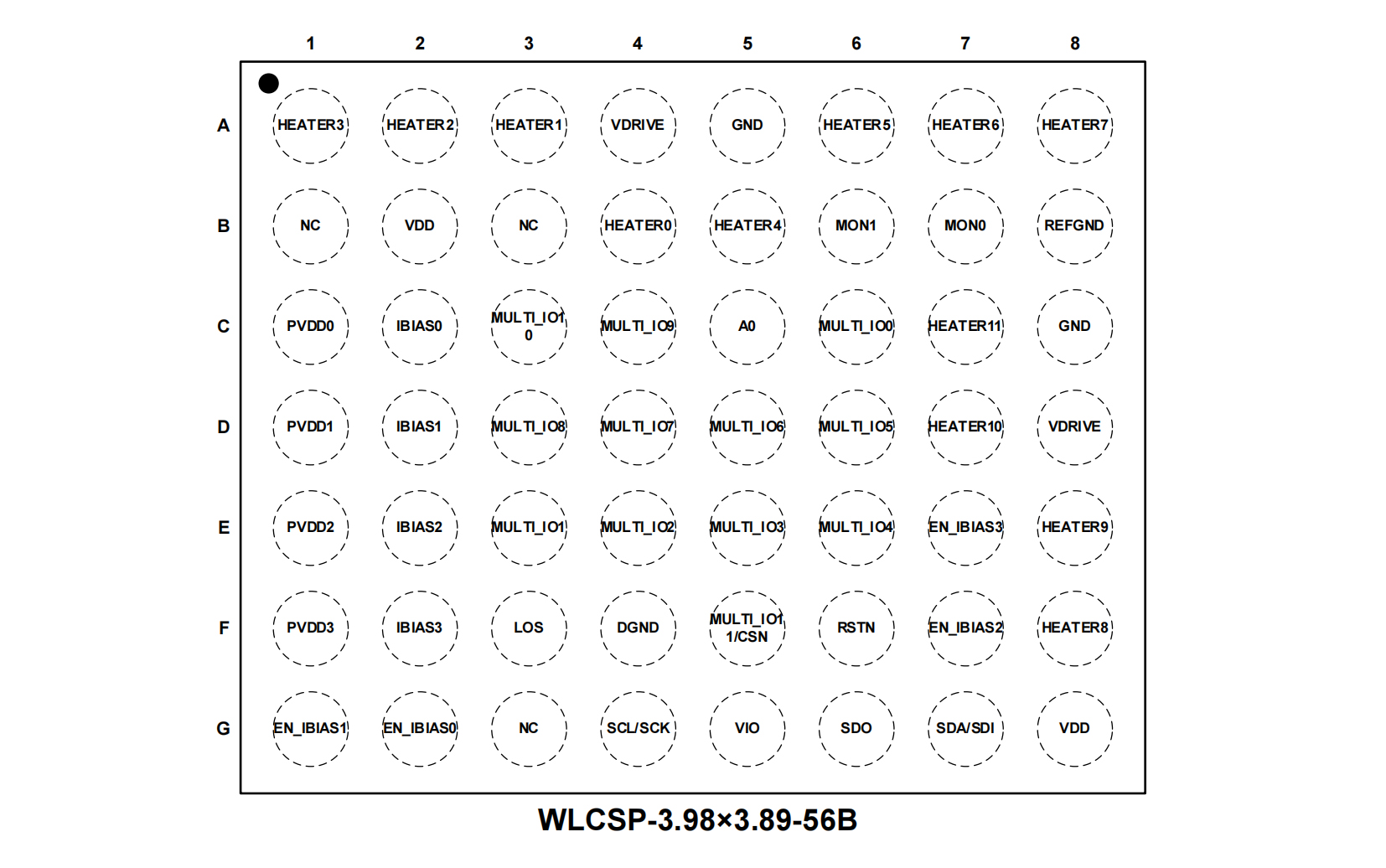

PIN CONFIGUTION
