3A Continuous (4A Peak), 2.2MHz 2.4V to 5.5V, 3D Buck PowerSoC.
SGMM2043
SGMM2043.pdf
SGMM2043.pdf
No.14767
FEATURES
• AHP-COT Architecture for Fast Transient Regulation
• 3D Integrated SoC Device with Power IC, Power
Inductor
• 2.4V to 5.5V Input Voltage Range
• 0.6V to 4V Wide Output Voltage Range
• 3A Continuous Output Current
• 4A Peak Output Current
• Low Quiescent Current: 5.7µA (SGMM2043A)
• Switching Frequency: 2.2MHz
• 100% Duty Cycle for the Lowest Dropout
• Power-Save Mode at Light Loads: SGMM2043A
• Force PWM Mode: SGMM2043B
• Output Discharge Function
• Power Good Output
• Thermal Shutdown
• Hiccup Short-Circuit Protection
• Available in a Green EMSIP-2.5×2.5-14L Package
DESCRIPTION
SGMM2043 is a high frequency synchronous Buck PowerSoC with an input voltage range from 2.4V to 5.5V and a wide output current range, optimized for compact solutions. For SGMM2043A, to keep the high efficiency in the whole load range, the device operates in pulse width modulation (PWM) mode at normal load and automatically enters the power-save mode (PSM) at light loads. The minimum static current is only 5.7µA to maintain its high efficiency. For SGMM2043B, the device operates in force PWM mode at light and heavy loads.
With its adaptive hysteresis and pseudo-constant on time control (AHP-COT) architecture, the load transient performance is excellent and achieves VOUT regulation accuracy.
The compact and low profile device is in a package of 2.5mm × 2.5mm × 1.27mm, allowing the system to achieve high density.
The SGMM2043 is available in a Green EMSIP-2.5×2.5-14L package.

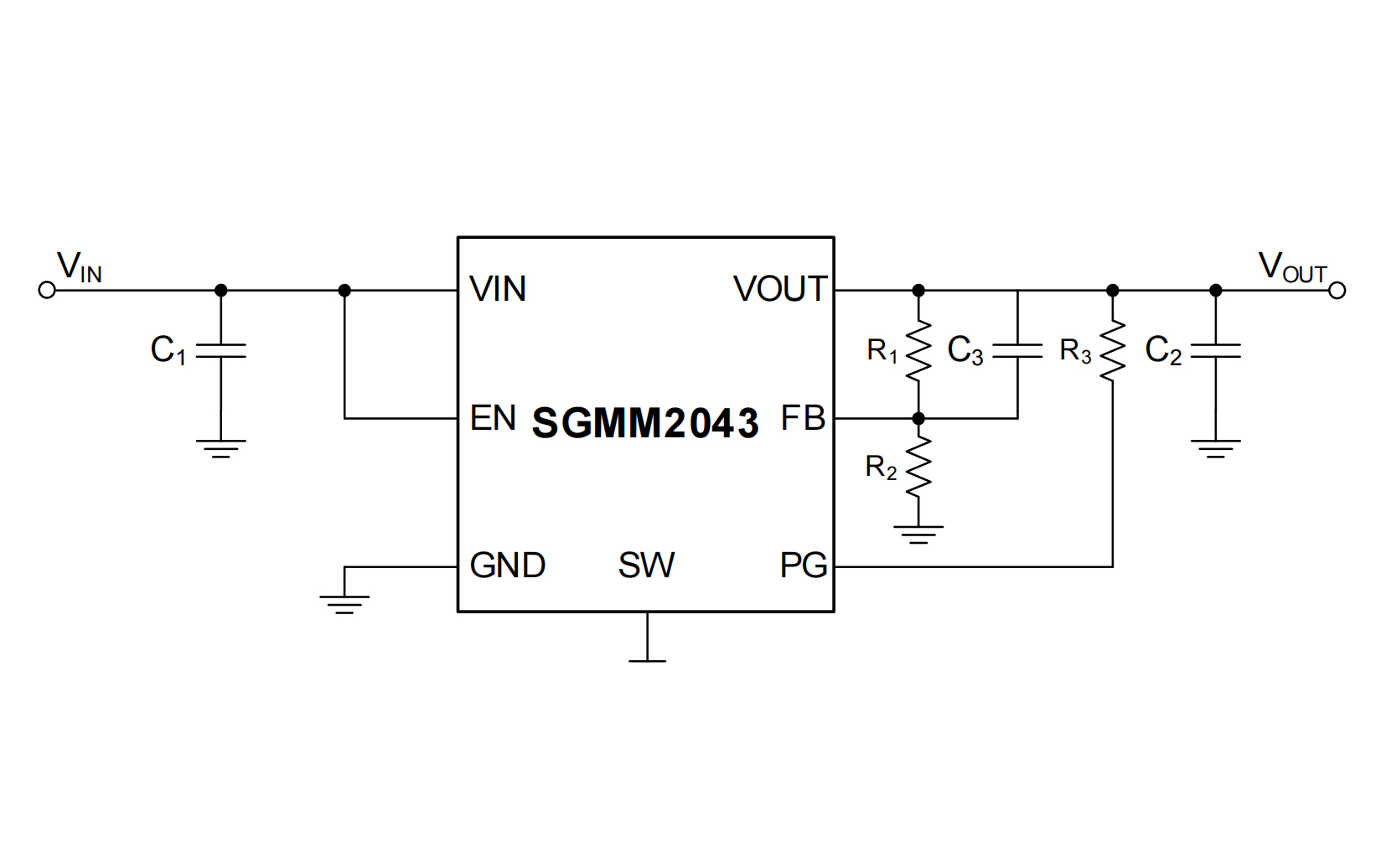

APPLICATION CIRCUIT

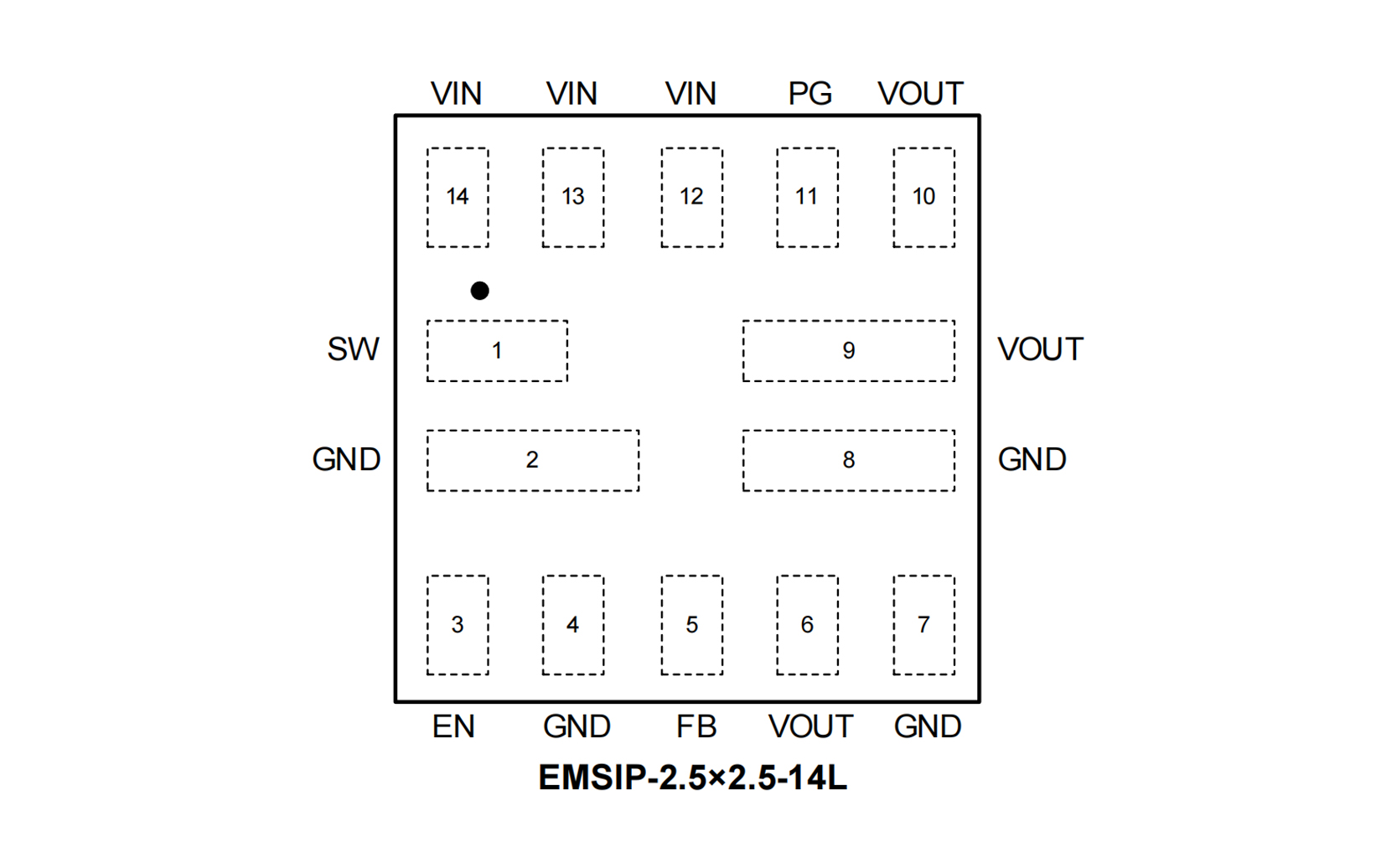

PIN CONFIGUTION
