Ultra-Low Capacitance 1-Channel ESD Protection.
SGM05UB1B3
SGM05UB1B3.pdf
SGM05UB1B3.pdf
No.14768
FEATURES
• High ESD Withstand Voltage:
IEC 61000-4-2: ±30kV (Air)
IEC 61000-4-2: ±30kV (Contact)
• Low Profile Package: XTDFN-0.6×0.3-2L and
UTDFN-1×0.6-2L
• Working Voltage: 5V (MAX)
• Rated Peak Pulse Current: 4.2A
• Channel Input Capacitance: 0.5pF (TYP)
DESCRIPTION
The SGM05UB1B3 is an ultra-low capacitance ESD protection device. As a new generation TVS, it is applied to protect circuits from electrostatic discharge.
APPLICATION CIRCUIT

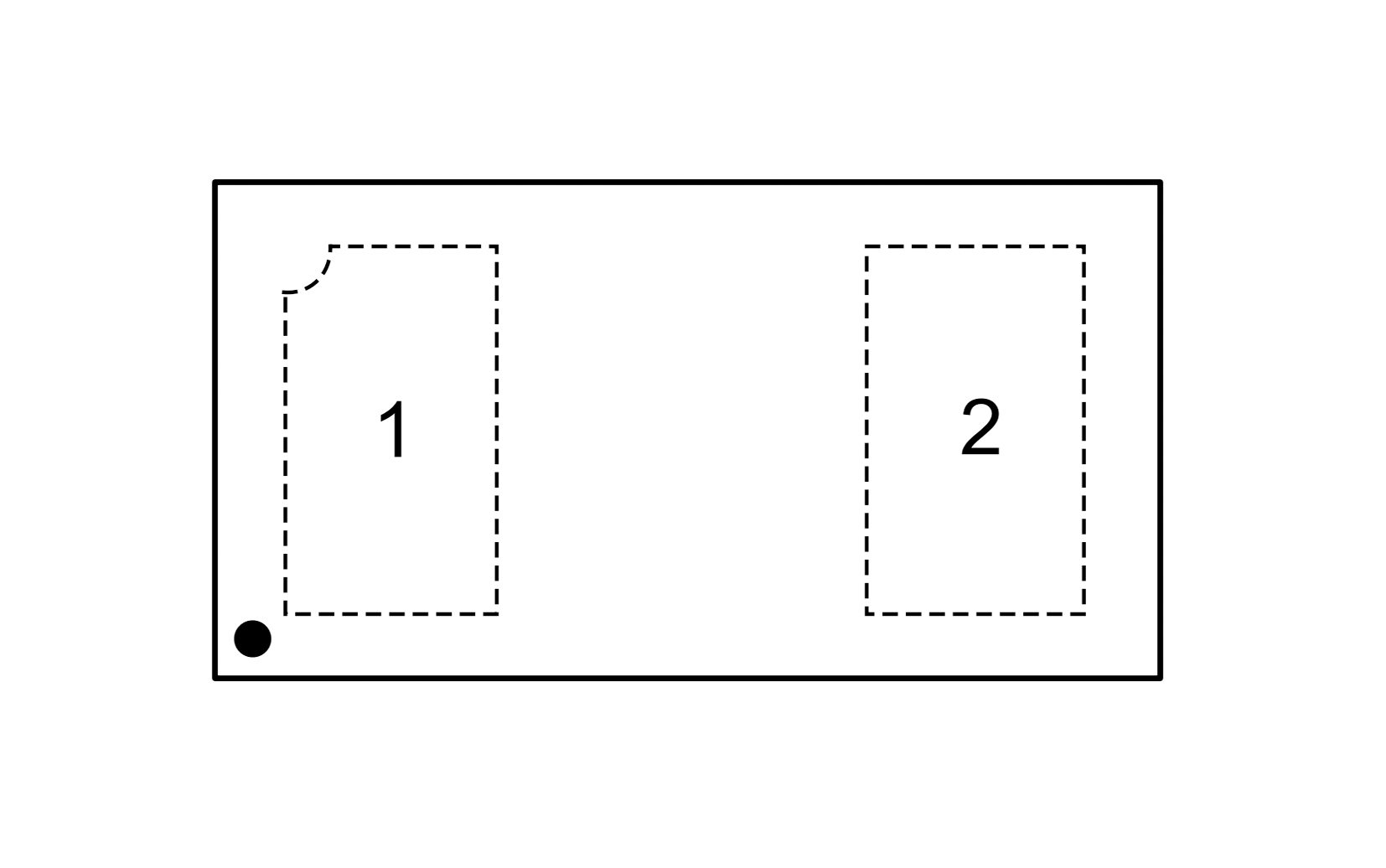

PIN CONFIGUTION
