• Ultra-Low Supply Current: 300nA (TYP)

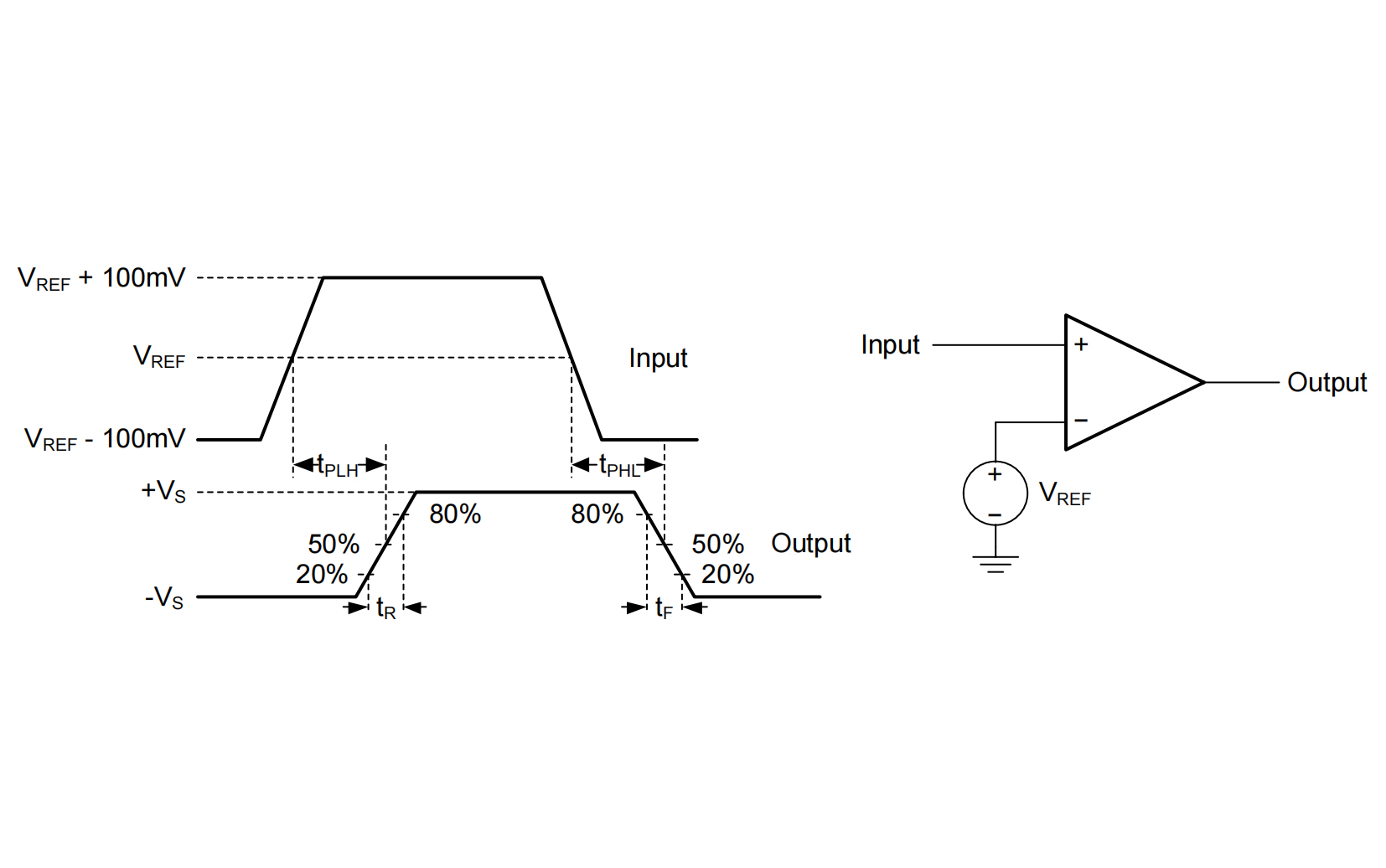

• Low Propagation Delay: 5μs (TYP)

• Supply Voltage Range: 1.6V to 5.5V

• Rail-to-Rail Input Common Mode Voltage

• Different Output Structures

  Push-Pull Output: SGM8713A-1

  Open-Drain Output: SGM8713B-1

• Internal Hysteresis: 6mV (TYP)

• -40℃ to +125℃ Operating Temperature Range

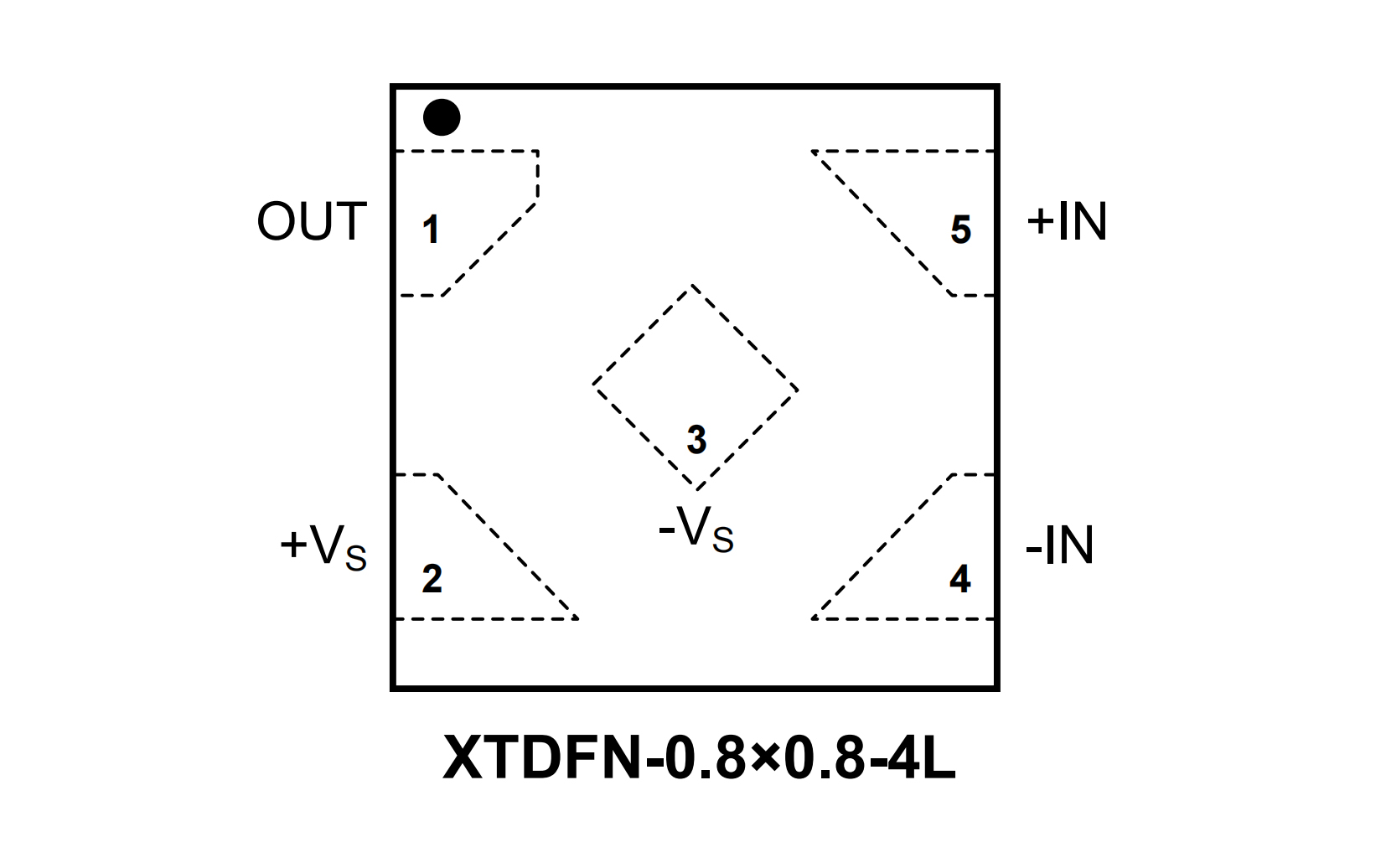

• Available in a Green XTDFN-0.8×0.8-4L Package

The SGM8713A-1 and SGM8713B-1 are single, nano power, small size comparators. They are optimized for low voltage operation from 1.6V to 5.5V single supply, and consume only 300nA quiescent current. Both devices are packaged in a space-saving XTDFN package, which is 0.8mm × 0.8mm. The combination of these features makes them good choices for smart battery powered equipment. Meanwhile, the SGM8713A-1 and SGM8713B-1 also have a great trade-off between low power and high speed, whose propagation delay is only 5μs. This results in a continuous system monitoring and quick respond to fault conditions without too much battery power dissipation.
