Micro-Power, Single-Supply, WLCSP Comparator with Precision Voltage Reference.
SGM8756
SGM8756.pdf
SGM8756.pdf
No.14771
FEATURES
• Low Supply Current:
40μA (TYP) Quiescent Current
50μA with 100kHz Switching at 5V
• Low Propagation Delay: 280ns (TYP)
• Rail-to-Rail Input and Output
• Push-Pull Output
• Sink and Source Current Capability: 100mA (TYP)
• Internal Hysteresis: 5mV (TYP)
• Internal Voltage Reference:
Accuracy: ±0.4% (MAX)
Temperature Drift: 100ppm/℃ (MAX)
Stable Output Capacitor Range: 0nF to 4.7nF
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green WLCSP-1.4×0.9-6B Package
DESCRIPTION
The SGM8756 is a single, low power comparator with a precision voltage reference. It is optimized for low voltage operation from 2.5V to 5.5V single supply, and consumes only 40µA supply current. These two advantages make the device a good choice for portable and battery powered equipment. Meanwhile, the SGM8756 has a great trade-off between low power and high speed, whose propagation delay is only 280ns with 100mV overdrive.
The SGM8756 supports rail-to-rail input and output operation. The input common mode voltage range is from -VS to +VS. The device has an input offset voltage of ±3mV (MAX) and an input bias current of ±0.1nA (TYP). The SGM8756 has a push-pull output structure, which is capable of sinking and sourcing milliamps of current. The comparator output structure is specially designed to decrease the surges of supply current during switching. It can sufficiently reduce the overall
power consumption in dynamic states, and almost eliminate many common power faults found in other comparators. The SGM8756 has an internal hysteresis for reducing comparator sensitivity to noise, even when the input signals move slowly.
The SGM8756 integrates a 1.23V voltage reference. The voltage reference features a low temperature drift of 100ppm/℃ (MAX) and a high accuracy of ±0.4% (MAX).
The SGM8756 is available in a Green WLCSP-1.4×0.9-6B package. It is specified over the operating temperature range of -40℃ to +125℃.

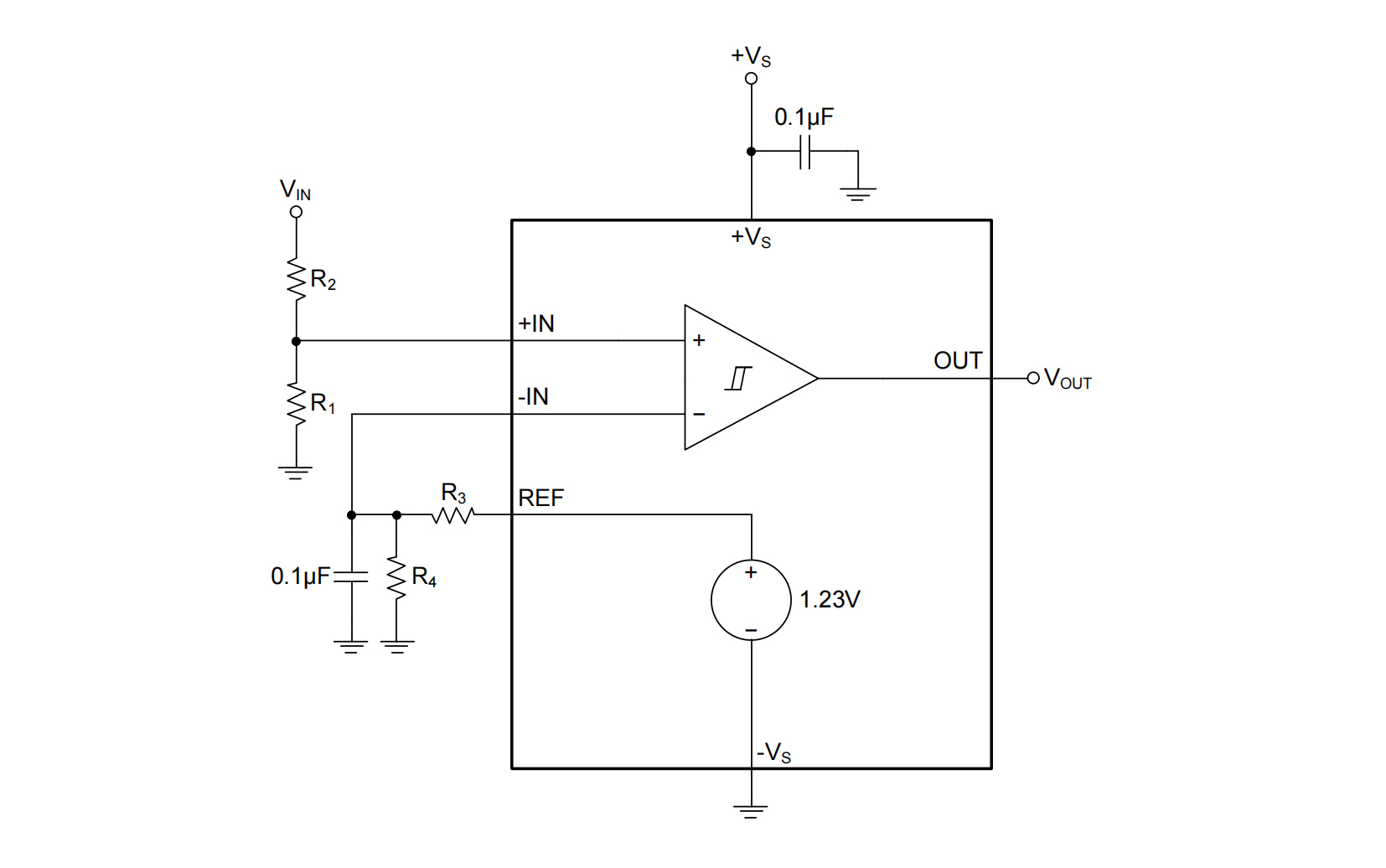

APPLICATION CIRCUIT

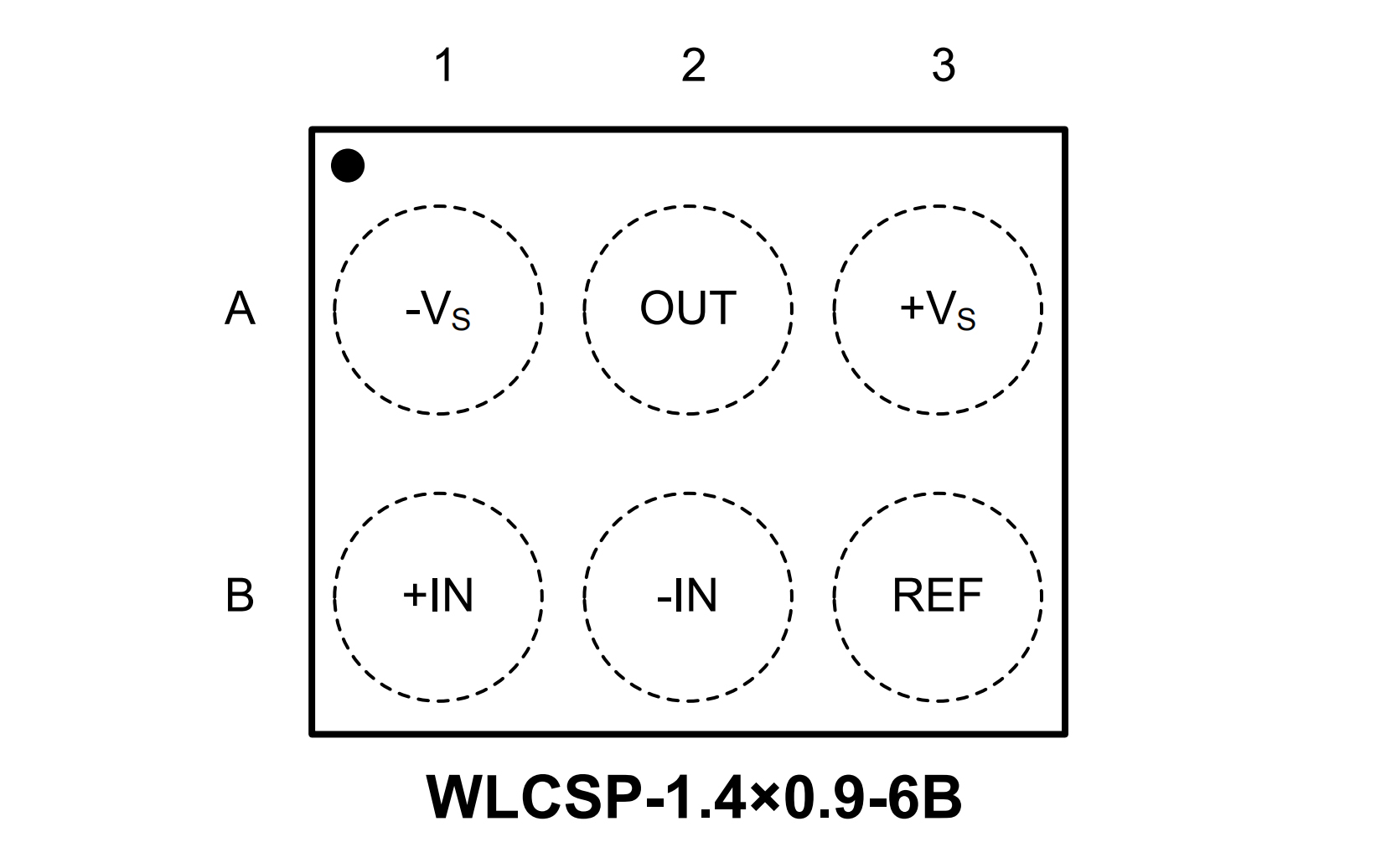

PIN CONFIGUTION
