6A, High Efficiency, 3D Buck PowerSoC.
SGMM2060
SGMM2060.pdf
SGMM2060.pdf
No.14773
FEATURES
• AHP-COT Control
• 6A Continuous Output Current
• 2.7V to 5.5V Input Voltage Range
• 1.2MHz Switching Frequency
• Low Dropout with 100% Duty Cycle
• Adjustable Output Voltage from 0.6V to VIN
• Output Discharge Function
• 1.3ms Internal Soft-Start Time and Pre-Biased
Startup
• Cycle-by-Cycle Over-Current Protection
• Hiccup Mode OCP/Short-Circuit Protection
• Stable with Low ESR Output Ceramic Capacitors
• Thermal Shutdown Protection
• Available in a Green EMSIP-3×3-20L Package
DESCRIPTION
The SGMM2060 device is a 2.7V to 5.5V synchronous Buck power module with AHP-COT architecture that is an optimized solution for high efficiency and compact size. The device integrates switches capable of delivering an output current up to 6A.
For SGMM2060, the device operates in force PWM mode at light and heavy loads. In shutdown state, the current consumption is reduced to 0.03μA (TYP).
The compact and low profile device is in a package of 3mm × 3mm × 1.72mm, allowing the system to achieve high density.
The SGMM2060 is available in a Green EMSIP-3×3-20L package.

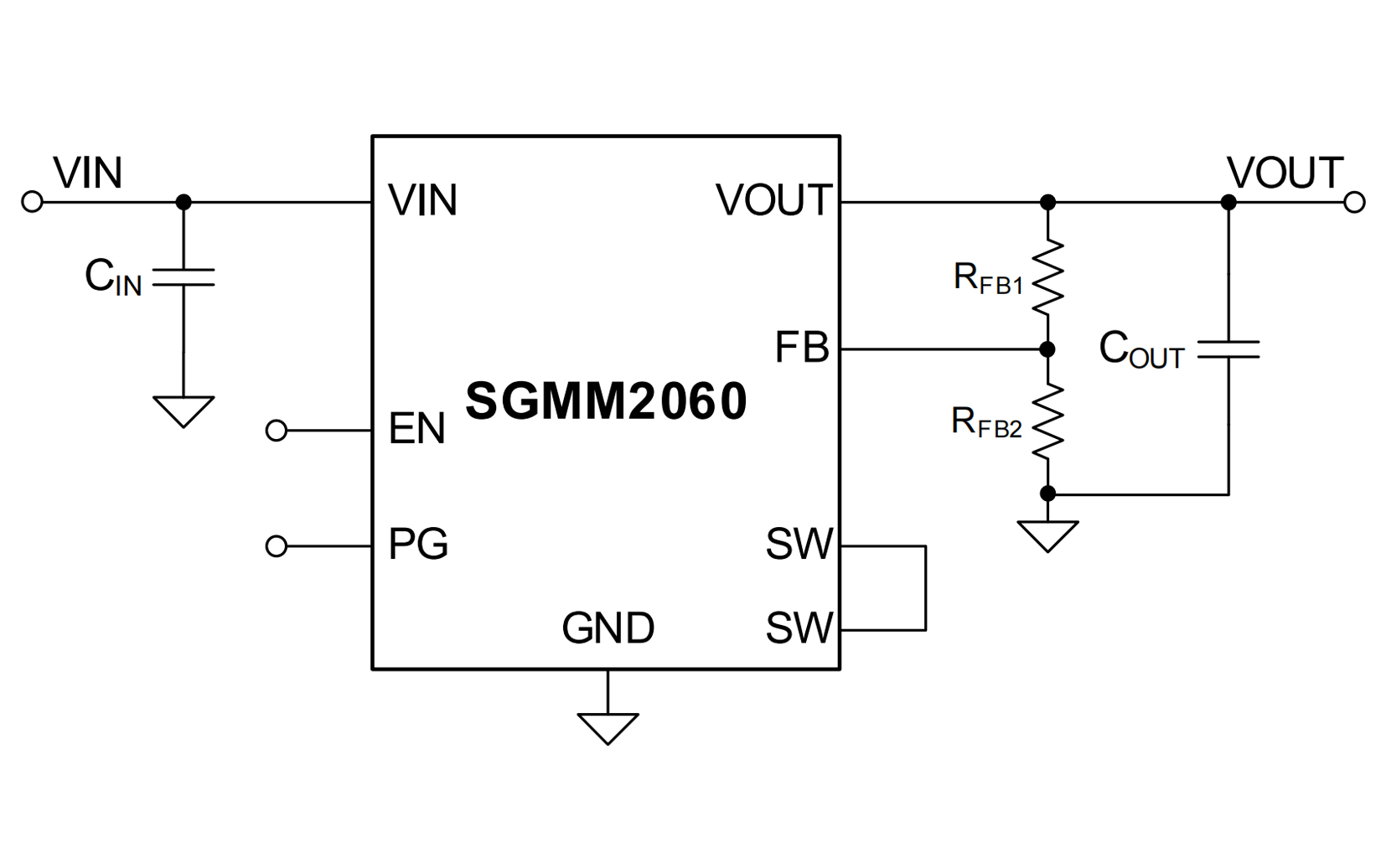

APPLICATION CIRCUIT

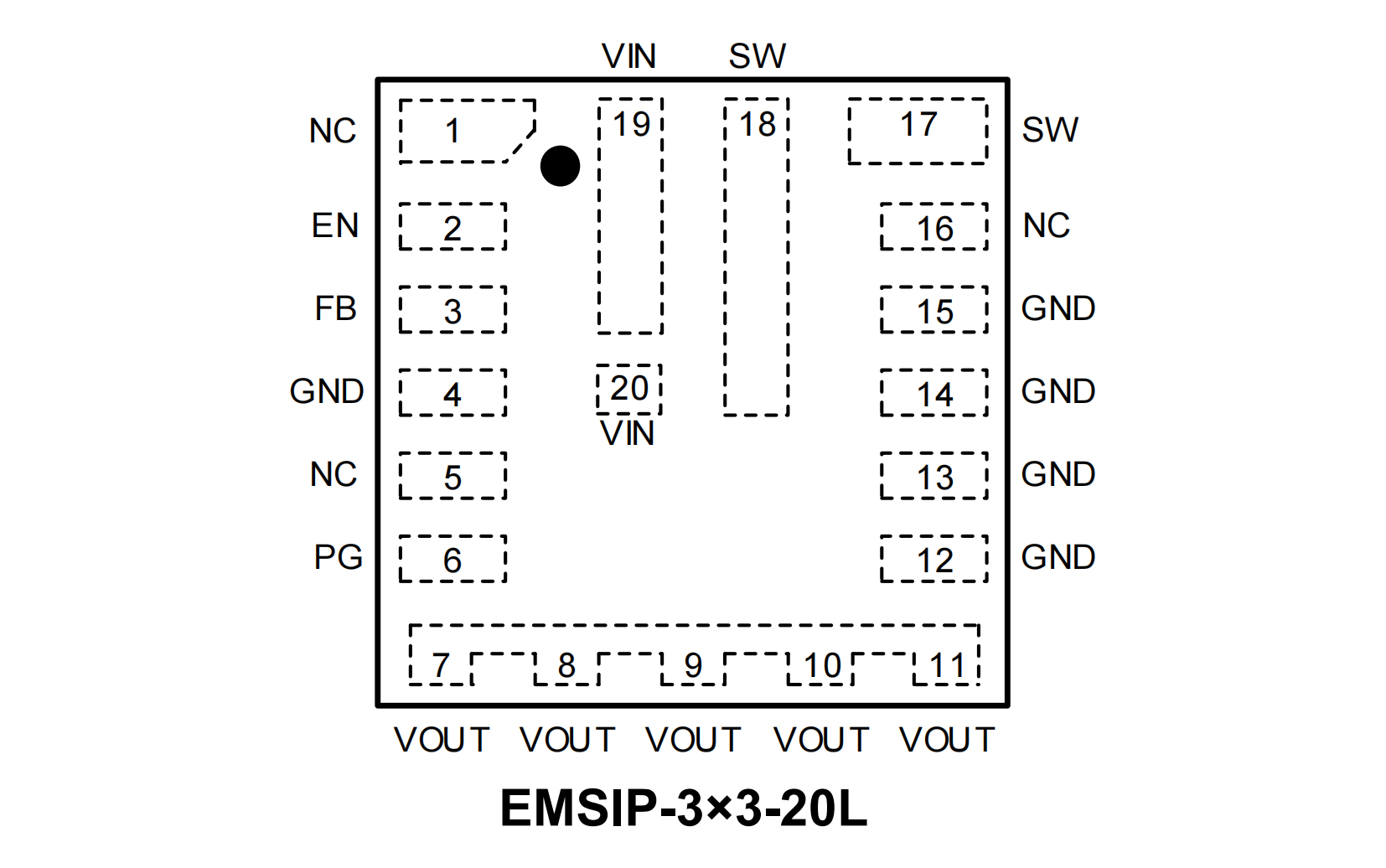

PIN CONFIGUTION
