● Ultra Low Dropout Regulated 3-CH Current Sinks

   30mV (TYP) at 10mA per Channel

● Programmable LED Setting by I2C Compatible Interface

● Individual Channel Control

   ON/OFF Interval Time Control

   Dimming Up/Down Time

   RGB LED Color Control

● 192 Current-Level Setting

   0.125mA ~ 24mA, 0.125mA Step

● No Noise, Non-Pulsating LED Current

● Fast, Smooth Start-Up

● Input Voltage Range: 2.5V to 5.5V

● Less than 1μA Shutdown Current

● -40℃ to +85℃ Operating Temperature Range

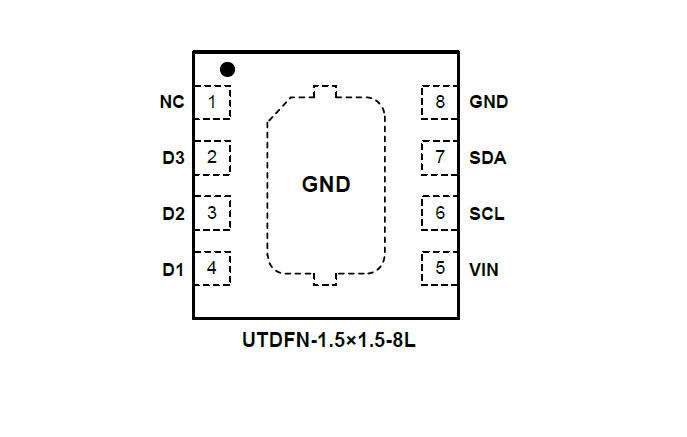

● Available in Green UTDFN-1.5×1.5-8L Package

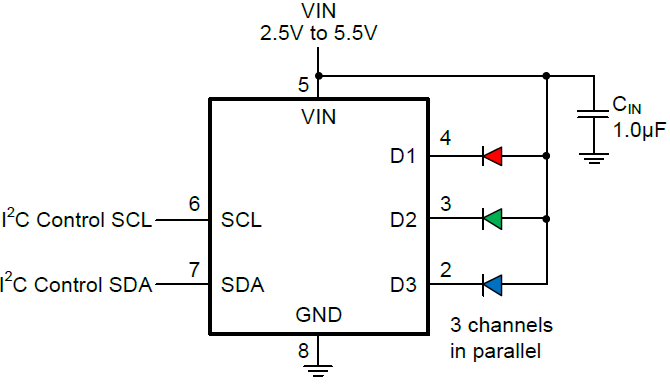

The SGM31323 is a fully programmable, constant current RGB LED driver with a flexible control interface. The device is ideally powered from 1-cell Lithium-Ion/ Polymer, 3-cell NiCd/NiMH/Alkaline batteries, or systems with 3.3V or 5V supplies. It provides 3 independent programmable constant current sinks without requiring any external components.

With an on-chip timing control unit, LED blink rate, fade-in and fade-out are user-adjustable resulting in unique color lighting patterns.

Nine internal registers are programmed via the I2C control interface with a built-in decoder allowing individual control of the LED channels’ ON/OFF state and current level. A total of 192 current levels are available for each channel from 0.125mA to 24mA with a 0.125mA step.

In shutdown mode, the quiescent current is reduced to less than 1μA.

The device is available in Green UTDFN-1.5×1.5-8L package. It operates over an ambient temperature range of -40℃ to +85℃.
