● H-Bridge or Two Half-Bridges

● Sleep Mode Supply Current: 140nA (TYP)

● Internal OC/UV/OT Protections

   Over-Current Threshold Options: 0.45A/0.9A/1.5A

   Under-Voltage Threshold Options: 1.75V/2.8V/3.6V

● Up to 5.5V Supply Range for Applications Powered by:

   1 Li+/Poly Cell

   1/2/3 Dry Cell(s)

   1 LiSOCl2 Cell

● -40℃ to +125℃ Operating Temperature Range

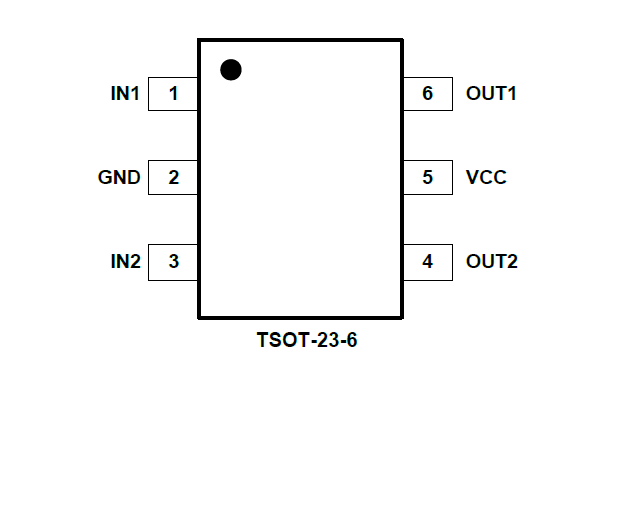

● Available in a Green TSOT-23-6 Package

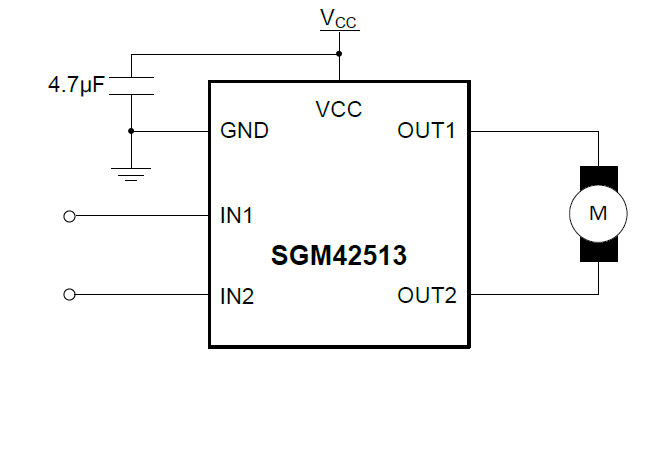

The SGM42513 is an integrated driver IC for driving motors and coils in industrial applications. The IN1 and IN2 pins allow simple interfacing to controller circuits.

Internal protection functions are provided for under- voltage lockout (UVLO), over-current protection (OCP) and over-temperature protection (OTP).

The SGM42513 is available in a Green TSOT-23-6 package. It operates over an ambient temperature range of -40℃ to +125℃.
