• 4.5V to 12V Single Supplies or ±2.25V to ±6V Dual Power Supplies

• High Speed

  100MHz -3dB Bandwidth

  56MHz -0.1dB Gain Flatness

  155V/μs Slew Rate

• Rail-to-Rail Output

• Low Differential Gain/Phase: 0.02%/0.02°

• High Output Drive: 103mA

•  -40℃ to +85℃ Operating Temperature Range

• Small Packaging:

  SGM8302 Available in MSOP-8 and SOIC-8

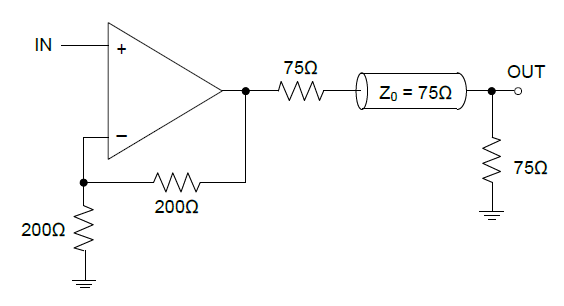

The SGM8301 (single), SGM8302 (dual) and SGM8304 (quad) are unity gain stable devices that combine high speed performance and rail-to-rail outputs. These devices are targeted for applications where an input or an output is exposed to the outside world, such as video and communications. These devices can operate from ±2.25V to ±6V dual power supplies or from 4.5V to 12V single supplies. The common mode input voltage range extends to the negative power-supply rail (ground in single-supply applications).

The SGM8301/2/4 consume only 8.5mA of quiescent supply current per amplifier while achieving a 100MHz -3dB bandwidth, 56MHz small signal bandwidth for -0.1dB gain flatness, and a 155V/μs slew rate. The SGM8302 dual is available in Green SOIC-8 and MSOP-8 packages.
