• Low Offset Voltage: 0.9mV (MAX)

• Rail-to-Rail Output

• Unity Gain Stable

• Gain-Bandwidth Product: 110kHz

• Supply Voltage Range: 1.6V to 5.5V

• Low Supply Current: 6.4μA/Amplifier (TYP)

• Small Packaging:

  Available in Green SOIC-8 and MSOP-8 Packages

The SGM8926 is a low power, low offset voltage and rail-to-rail output voltage feedback amplifier. It has a wide output voltage swing, and takes the minimum operating supply voltage down to 1.6V. The maximum recommended supply voltage is 5.5V. The SGM8926 provides 110kHz bandwidth at a low current consumption of 6.4μA per amplifier. Very low input bias currents of 1pA enable this amplifier to be used for integrators, photodiode amplifiers, and piezoelectric sensors. Rail-to-rail output is useful to designers for buffering ASIC in single-supply systems.

Applications for this amplifier also include safety monitoring, portable equipment, battery and power supply control, signal conditioning and interfacing for transducers in very low power systems.

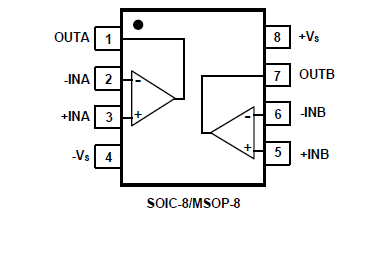

The SGM8926 dual is available in Green MSOP-8 and SOIC-8 packages. It is specified over the extended -40℃ to +85℃ temperature range.
