SGM61111Q.pdf• AEC-Q100 Qualified for Automotive Applications
Device Temperature Grade 1
TA = -40℃ to +125℃
• AHP-COT Control
• 3V to 17V Input Voltage Range
• Support 1A Output Current
• 0.9V to 5.5V Adjustable Output Voltage
• Fixed Output Voltage Version: 3.3V
• Internal Compensation
• 170µs (TYP) Soft-Start Time
• Pre-biased Function during Soft Startup
• Power-Save Mode with Seamless Transition
• 22μA (TYP) Quiescent Current
• Power-Good Output
• 100% Duty Cycle Mode
• Under-Voltage Lockout (UVLO)
• Thermal Shutdown Protection
• Short-Circuit Protection
• Over-Temperature Protection

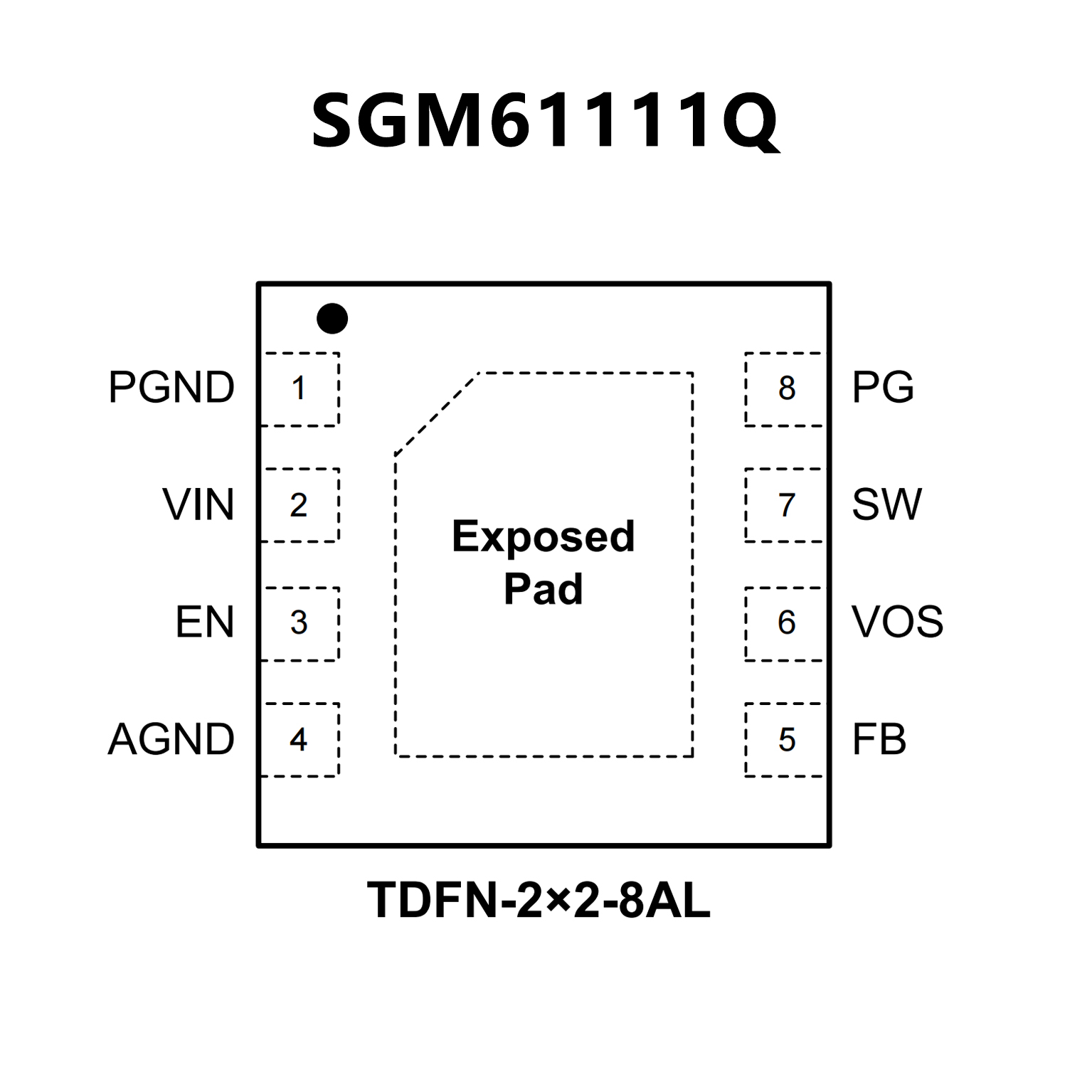

• Available in a Green TDFN-2×2-8AL Package
• DCS-Control™ topology
Device temperature grade: –40°C to
125°C operating junction temperature range
Device HBM ESD classification level H2
Device CDM ESD classification level C4B
• Functional Safety-Capable
• Input voltage range: 3 V to 17 V
• Up to 1-A output current
• Adjustable output voltage from 0.9 V to 6 V
• Fixed output voltage versions
• Seamless power save mode transition
• Typically 17-µA quiescent current
• Power-good output
• 100% Duty cycle mode
• Short circuit protection
• Overtemperature protection
• Pin-to-pin compatible with TPS62170-Q1
• Available in a 2-mm × 2-mm WSON-8 package
